Products
HomeProductsABB MotorsHigh Efficiency Motors

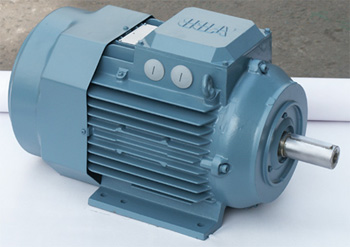

High Efficiency Motors
| Frames | IE1 | IE2 | IE3 |
| 71 – 132 | Yes | Yes | Yes |
| 160 – 250 | Yes | Yes | Yes |
| 280 - 400 | Yes | Yes | Yes |
IE1 Motors
- Rating : 0.37 to 355kW
- Pole : 2 to 6
- Higher ratings can be offered
- Frame : 71 to 400
- Voltage : 220V to 690V
- IS 12615 : 2011 & IEC 60034-30
IE2 Motors
- Rating : 0.37 to 355kW
- Pole : 2 to 6
- Higher ratings can be offered
- Frame : 71 to 400
- Voltage : 220V to 690V
- IS 12615 : 2011 & IEC 60034-30
IE3 Motors
- Rating : 0.37 to 355kW
- Pole : 2 to 6
- Higher ratings can be offered
- Frame : 71 to 400
- Voltage : 220V to 690V
- IS 12615 : 2011 & IEC 60034-30
M2BAX 71-250 IE1, IE2, IE3 Motors
- New Global design
- Motors for IE1, IE2 & IE3 Efficiencies 415V, 50°C ambient
- Suitable for General Applications
- Sealed Bearing as a Std. Feature across 71-250 Frames therefore Simple maintenance
- Large Terminal Box with default 90ºx4 rotation
- Shrouded box & cover for better IP protection
- Integrated Lifting lugs.
- Drain plugs as a standard feature.
- Stronger fan design with integrated key
- High tensile hardware
- Less weight compared to existing series
